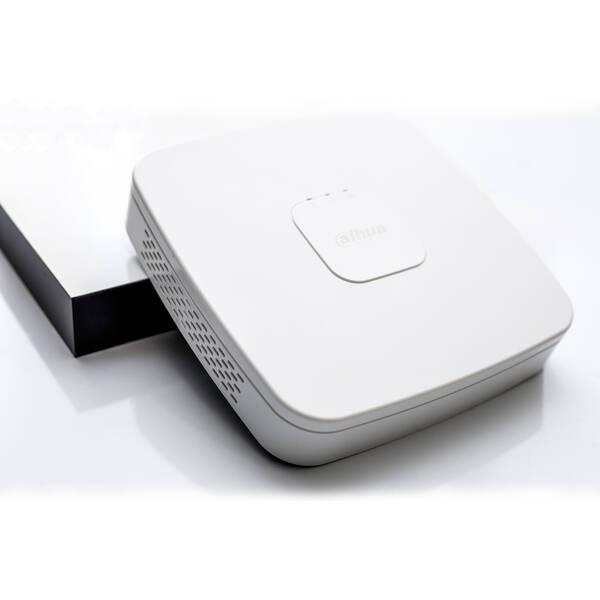

NVR2104-P-S3 4-channel Network Video Recorder

The IP Video Recorder integrates digital cameras into a complete surveillance system, without the need for a PC. This makes the whole system fully autonomous. The IP video recorder records, transfers to a remote server, backs up and configures, and you can do it all at the same time. IP Video Dahua NVR2104-P-S3 irreplaceable for the construction of a professional video surveillance system, as it removes the need to use a separate server, increasing reliability and quality of the system as a whole.

• Smart H.265+/H.265/Smart H.264+/H.264 decoding format


• Max. decoding capability: 6 × 1080p@30 fps. Supports adaptive decoding



• AI by camera: perimeter protection,and SMD Plus



• Connected to the third-party network cameras



• Security baseline 2.1


Specifications of Dahua NVR2104-P-S3

System

• Embedded industrial grade processor


• Linux operating system


• Web operating interface; local graphical interface

Perimeter Protection

• Perimeter Performance of AI by Camera (Number of Channels) - 4

SMD Plus

• SMD Plus by Camera - 4-channel SMD Plus (AI by camera), secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change

Audio and video

• Access channel 4 channels


• Network bandwidth: 80 Mbps; storage: 80 Mbps; forwarding: 60 Mbps


• Resolution 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1


• Decoding capability 1 channel 12MP@30 fps; 1 channel 8MP@30 fps; 2 channel 5MP@30 fps; 3 channel 4MP@30 fps; 6 channel 1080p@30 fps

Video output

• 1 × VGA, 1 × HDMI (simultaneous)


• Multi-Screen Display 1, 4 views

Compression Standard

• Video compression Smart H.265; H.265; Smart H.264


• Audio compression PCM; G711A; G711U; G726

Network

• Network Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP filter; DDNS; Alarm Server; IP Search (supports Dahua IP Camera, DVR, NVS, etc.); P2P


• Mobile phone access Android; iOS


• Compatibility ONVIF (T/S/G profile); CGI; SDK


• Browser Chrome; IE9 or later; Firefox

Recording Playback

• Record playback Multichannel playback Up to 4 channels


• Recording mode Manual recording; alarm recording; motion detection recording; scheduled recording


• Storage method Local hard disk and network


• Backup method USB device

Playback functionPlay, pause, stop, fast forward, rewind, frame-by-frame playback

Full screen; backup (video clip/file); partial zoom; sound on/off

Alarm

• General Alarm - Motion detection; privacy masking; video loss; PIR alarm


• Anomaly Alarm - Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception


• Intelligent Alarm - Perimeter protection; SMD PlusAlarm Linkage - Recording; snapshot; buzzer; log; preset; email; tour


• Alarm Linkage - Recording; snapshot; buzzer; log; preset; email; tour

Port

• Audio Input- 1


• Audio Output - 1


• HDD Interface - 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature


• USB - 2 rear USB 2.0 ports


• HDMI - 1


• VGA - 1


• Network Port -1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port


• PoE Port - 4 × PoE ports, 10/100 Mbps

General information

• Power Supply - 48/53 VDC, 1.25/1.13 A


• Power consumption - Total video output power ≤ 10W (without HDD).



• Total PoE output power 36 W, max. output power per port 25.5 W.



• Net weight 0.48 kg (1.06 lb)



• Gross Weight - 1.37 kg (3.02 lbs)



• Product dimensions - 204.6 mm × 206.4 mm × 45.6 mm (8.06" × 8.13" × 1.80") (W × L × H)



• Operating temperature -10 °C to +55 °C (14 °F to +131 °F)



• Operating humidity - 10% to 93% (RHF)

IP Camera Input	4
PoE, PoC, Wi-Fi Support:	4xPoE
Internal HDD	1
Audio In/Out	1/1
Working Environment	-10°C ~ +55°C


Download the product information
