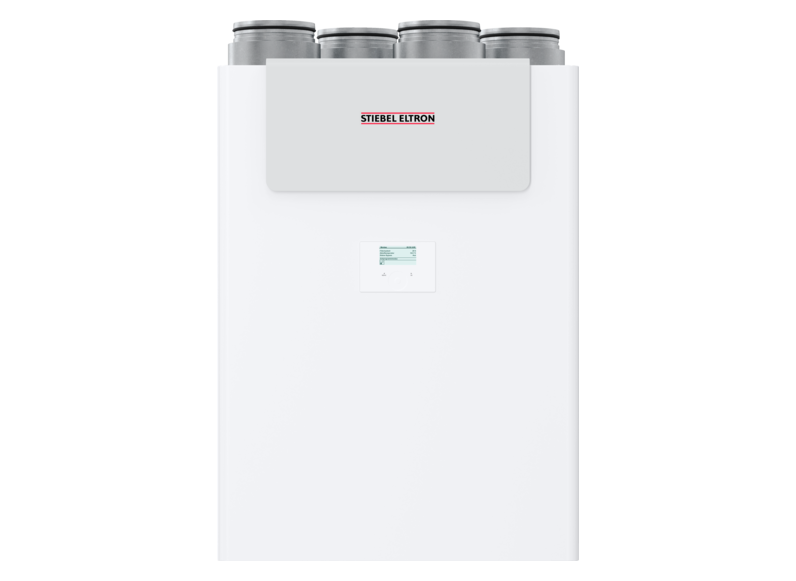

Applicable air handling units: STIEBEL ELTRON LWZ 180/  / STIEBEL ELTRON LWZ 280

Quality level: the same quality as an original filter.

Measurements (mm):

• Supply air filter: 396x190x20 (filter material) G4 or 394x185x48 (cardboard frame) M5/F7


• Extract air filter:396x190x20 (filter material) G4

Manufacturer product codes:

234208, 234147.

Technical data:

Filtering material G4:

• Type: filtering material.


• Efficiency ISO16890: Coarse 65%.


• Protection level: large dust particles, insects. puff, some pollen.


• Usage: supply and extract.

Filter M5:

• Type: mini-pleat filter (MPL)


• Frame: synthetic, moisture resistant.


• Filtering material: synthetic


• Efficiency ISO16890: ePM10 55%.


• Protection level: large dust particles, insects. puff, pollen, mold.


• Usage: supply only, for sensitive people.

Filter F7:

• Type: mini-pleat filter (MPL)


• Frame:  synthetic, moisture resistant.


• Filtering material: synthetic


• Efficiency ISO16890: ePM1 70%.


• Protection level: large dust particles, insects. puff, pollen, mold, combustion particles, smog.


• Usage: supply only, for sensitive people and polluted areas

Filter F7/AC:

• Type: mini-pleat filter (MPL)


• Frame:  synthetic, moisture resistant.


• Filtering material: synthetic with activated carbon


• Efficiency ISO16890: ePM2.5 60%.


• Protection level: large dust particles, insects. puff, pollen, mold, combustion particles, smog, volatile particles (smells), NOx gasses.


• Usage: supply only, for heavily polluted areas

Packing: filters are packed in a cardboard box for long-term storage in a dry environment.

Advantages of our panel filter:

•



  • A-frame is made of synthetic material. Operates even at a relative humidity of 100%. Suitable for humid European climate.


  • Firmly glued throughout all frame areas. Filter construction is airtight and there are no leakages of dust and other particles through connections.


  • Tested according to the new EN ISO 16890 standard.


  • Filters are manufactured from high-quality synthetic filtering media. Such filtering material is much stronger and damage-resistant. The holes will not appear on the filter, which may let through the dust and other dangerous particles.





Filter replacement manuals: click to download…

Replacement period: replacement period of the air filters depends on ambient air contamination. Usually, filters serve for 4-7 months.

• A higher discount is being applied by purchasing more than 10 filter sets. Please contact us directly.
